FLYT Grid Tie Free Energy 1kw 2kw 5kW 10kW 20kw Vertical Axis Wind Generator Turbine 12V 24V 48V 220v Windmill Maglev Generator

Short Description:

1, Curved blade design, utilizes wind resource effectively and obtains a higher power generation.

2, Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unper-ceivable level in natural environment.

3, Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a- small wind pressure even in strong wind.

4, Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved.

5, Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.




Product Detail

Product Tags

Video

Features

1, Curved blade design, utilizes wind resource effectively and obtains a higher power generation.
2, Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unper-ceivable level in natural environment.
3, Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a- small wind pressure even in strong wind.
4, Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved.
5, Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.

Specifications

Model
FX-300 FX-500 FX-1000 FX-2000
Rated Power 300W 500W 1000W 2000W
Max Power 310W 510W 1100W 2200W
Rated Voltage 12V/24V 12V/24V/48V 24V~220V 48V~380V
Start Up Speed 1.5m/s 1.5m/s 2.5m/s 2.5m/s
Rated Speed 11m/s 11m/s 11m/s 11m/s
Cut-in Speed 3.5m/s 3.5m/s 3.5m/s 3.5m/s
Survival Speed 40m/s 40m/s 40m/s 45m/s
Blades Quantity 3 PCS 3 pcs
Include boost drum
Blades Material Fiber glass
Generator Type Maglev coreless generator Iron-core generator Axial flux coreless disc type permanent magnet generator
Working Temperature -40℃~+40℃
Protection Level IP54
Working environment humidness ≤90%
Altitude ≤4500m
Install Height 3~12m
Overload Protection Electromagnetic Brake



微信图片_20241212113328

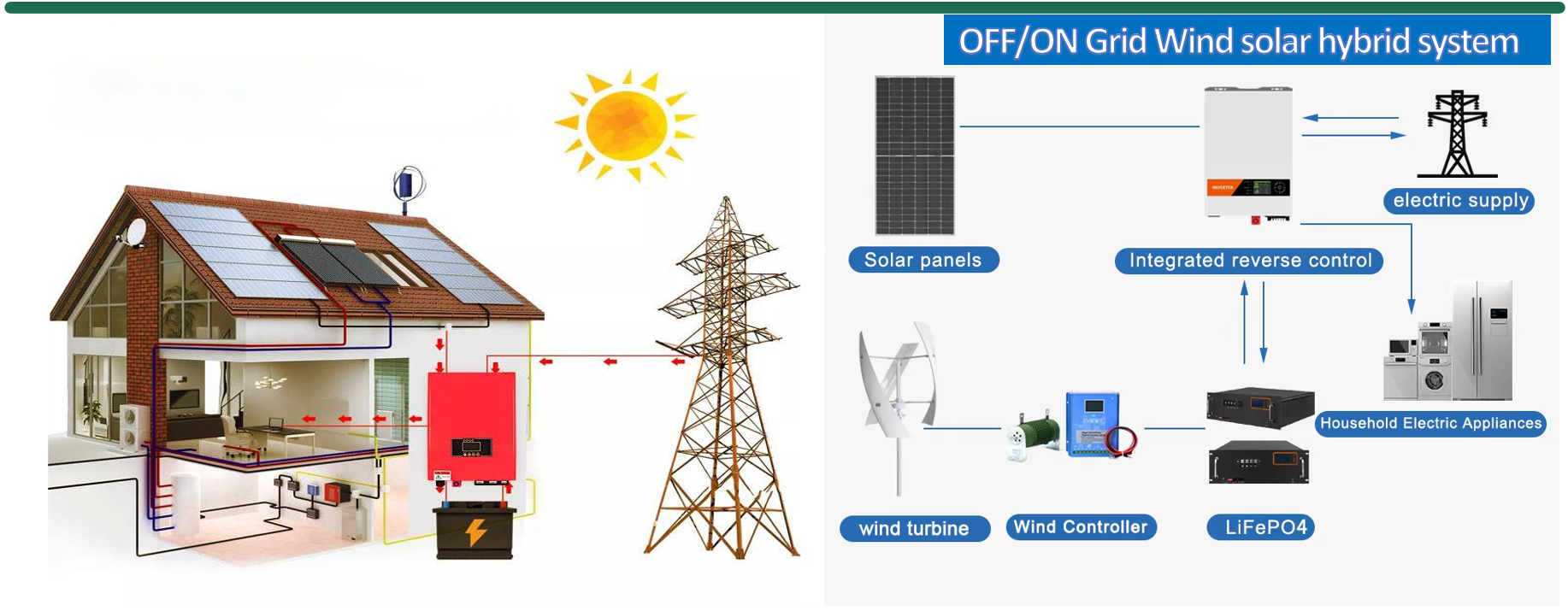

The new trend to save

wind turbine can be connected to lithium batteries or connect to on grid hybrid inverter directly. This kind of system is not need many battery. It can be on grid when the power is more than need.At the same time, this system can be off grid when work with battery bank.

微信图片_202412121133281

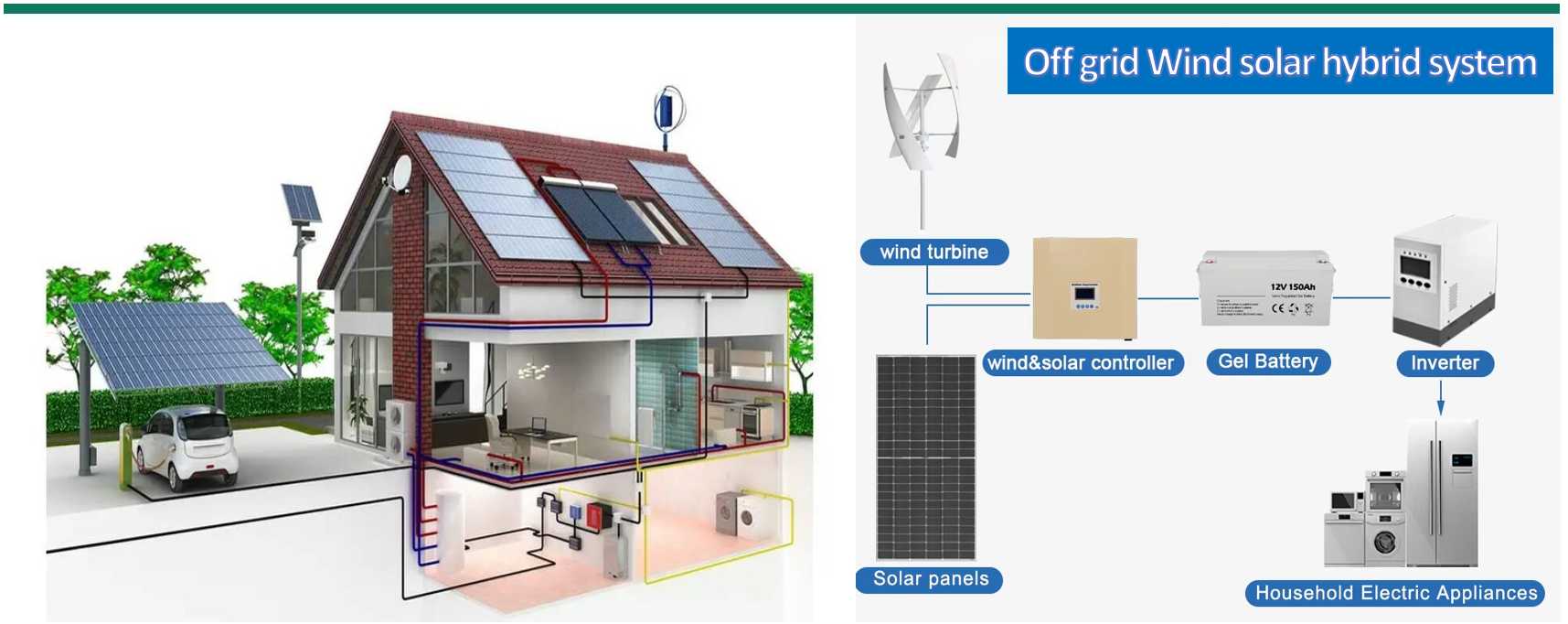

ADVANTAGES OF OFF-GRID SOLAR SYSTEMS
1. NO ACCESS TO THE UTILITY GRID
Off-grid solar systems can be cheaper than extending power lines in certain remote areas.
Consider off-gird if you’re more than 100 yards from the grid. The costs of overhead transmission lines range from $174,000 per mile (for rural construction) to $11,000,000 per mile (for urban construction).

2. BECOME ENERGY SELF-SUFFICIENT
Living off the grid and being self-sufficient feels good. For some people, this feeling is worth more than saving money.
Energy self-sufficiency is also a form of security. Power failures on the utility grid do not affect off-grid wind systems.
On the flip side, batteries can only store a certain amount of energy, and during cloudy times, being connected to the grid is actually where the security is. You should install a backup generator to be prepared for these kinds of situations.



微信图片_20241212132613

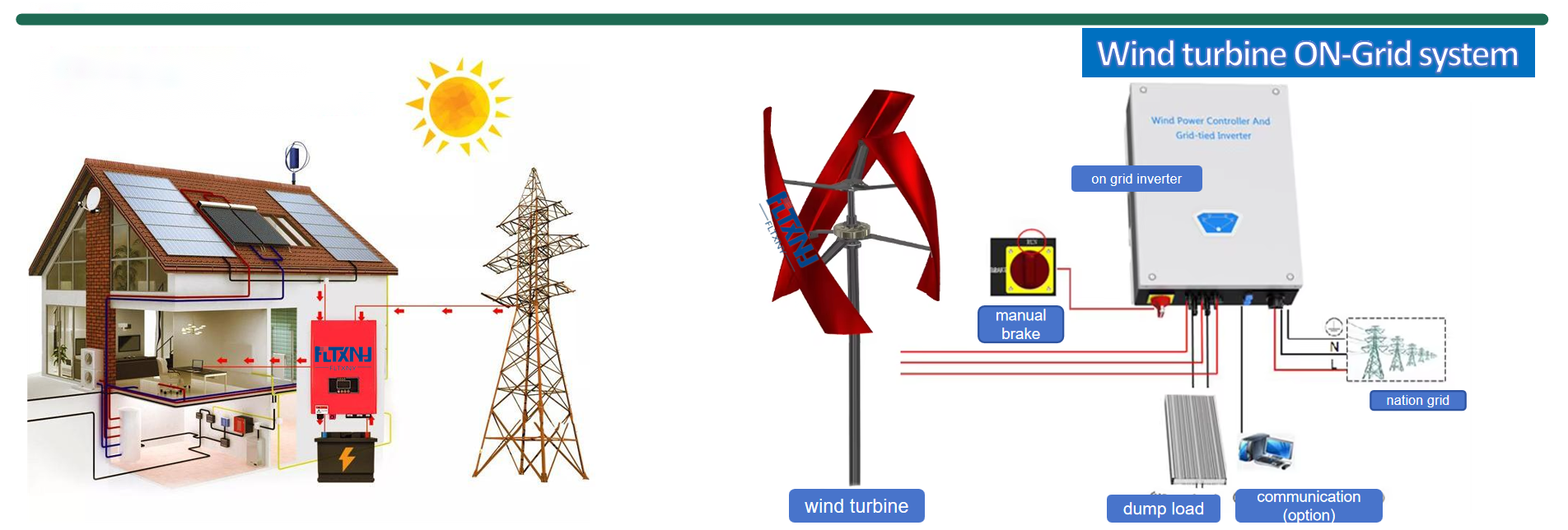

ADVANTAGES OF GRID-TIED SYSTEMS

1. SAVE MORE MONEY WITH NET METERING
A grid-connection will allow you to save more money with wind generator through better efficiency rates, net metering, plus lower equipment and installation costs:
).Batteries, and other stand-alone equipment, are required for a fully functional off-grid wind system and add to costs as well as maintenance. Grid-tied wind systems are therefore generally cheaper and simpler to install.
).Your wind turbine generator will often generate more electricity than what you are capable of consuming. With net metering, homeowners can put this excess electricity onto the utility grid instead of storing it themselves with batteries.
).Net metering (or feed-in tariff schemes in some countries) play an important role in how wind power is incentivized. Without it,residential wind systems would be much less feasible from a financial point of view.
).Many utility companies are committed to buying electricity from homeowners at the same rate as they sell it themselves.
2. THE UTILITY GRID IS A VIRTUAL BATTERY
).Electricity has to be spent in real time. However, it can be temporarily stored as other forms of energy (e.g. chemical energy in batteries). Energy storage typically comes with significant losses.
).The electric power grid is in many ways also a battery, without the need for maintenance or replacements, and with much better efficiency rates. In other words, more electricity (and more money) goes to waste with conventional battery systems.
).According to EIA data[1], national, annual electricity transmission and distribution losses average about 7% of the electricity that is transmitted in the United States. Lead-acid batteries, which are commonly used with solar panels, are only 80-90% efficient at storing energy, and their performance degrades with time.
).Additional perks of being grid-tied include access to backup power from the utility grid (in case your solar system stop generating electricity for one reason or another). At the same time you help to mitigate the utility company`s peak load. As a result, the efficiency of our electrical system as a whole goes up.

Why Choose US

1. Competitive Price
--We are the factory/manufacturer so we can control production costs and then sell at the lowest price.

2. Controllable quality
--All products will be produced in our factory so we can show you every detail of the production and let you check the quality of the order.

3. Multiple payment methods
-- We accept online Alipay, bank transfer,Paypal ,LC, Western union etc.

4. Various forms of cooperation
--We are not only offer you our products, if it is needed, we could be your partner and design product according to your requirement. Our factory is your factory!

5. Perfect after-sales service
--As a manufacturer of wind turbine and generator products for over 4 years,we are very experiences to dealing all kinds of problems. So whatever happens,we will solve it at the first time.
